Bookshelf Assembly Instructions

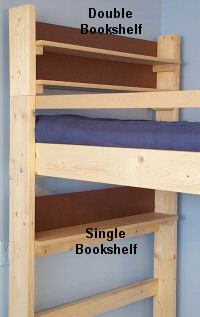

The Double Bookshelf is placed above the bed.

The Single Bookshelf is placed below the bed, typically on the third rung.



Double Bookshelf  Attach the Shelf Sides to the Legs using the Shelf Leg Supports with 2 screws.  Attach the Bottom Shelf with 1-5/8 screws.  Attach the Top Shelf Support to the Shelf Leg Supports at any desired position.  Attach the Top Shelf with 1-5/8 screws.  Attach the Backboard with 1-1/4 nails.



Single Bookshelf  Attach the Shelf Supports to the Legs at the third rung.  Attach the Shelf with 1-5/8 screws.  Attach the Backboard with 1-1/4 nails.





Included in this Shipment - Single Bookshelf (optional)

(1) Shelf x 7 Plywood

(2) Shelf Supports 2x2 x 4

(1) Backboard 1/8 x 9 Tempered Hardboard

(6) 1-1/4 Nails

(4) 1-5/8 Drywall Screws

(4) 2-1/2 Drywall Screws



Included in this Shipment - Double Bookshelf (optional)

(2) Shelves x 7 Plywood

(2) Shelf Sides 2x6 x 15

(2) Shelf Leg Supports 2x4 x 5

(2) Shelf Supports 2x2 x 5

(1) Backboard 1/8 x 12 Tempered Hardboard

(6) 1-1/4 Nails

(12) 1-5/8 Drywall Screws

(12) 2-1/2 Drywall Screws
